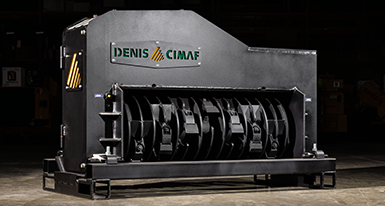

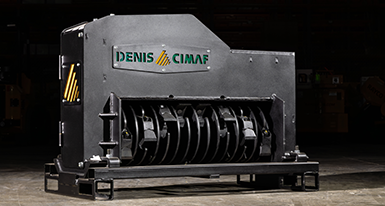

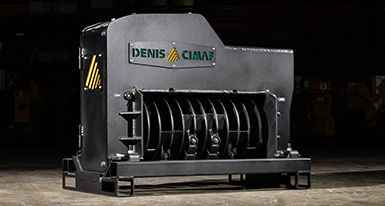

The DAH is a high-power, forestry brushcutting-mulching industrial system to be installed on most excavators or other carriers with articulated masts. DAH brushcutter-mulchers are designed for vegetation control work.
Specifications & Details
| SPECIFICATION | DAH-150Er | DAH-150E | DAH-125D | DAH-100C | DAH-080C | DAH-085B | DAH-065B |
| Excavator Size | 54,000-70,000 lb (24.5-32 t) |
40,000-54,000b (18-24.5 t) |
32,000-44,000 lb (16-22 t) |
20,000-30,000 lb (10-15 t) |
15,000-22,000 lb (7-10 t) |
15,000-22,000 lb (7-10 t) |
11,000-15,000 lb (5-7 t) |
| Approx. Carrier Power | 192 HP (143 kW) and up |
130 HP (96 kW) and up |
80 HP (60 kW) and up |
65 HP (48 kW) and up |
54 HP (40 kW) and up |
54 HP (40 kW) and up |
50 HP (37 kW) and less |
| Cutting Width | 57" (145 cm) | 57" (145 cm) | 48" (122 cm) | 42" (107 cm) | 32" (81 cm) | 34" (86 cm) | 26" (66 cm) |
| Cutting Distance from Ground Level | 1.07" (2.7 cm) | 1.07" (2.7 cm) | 1" (2.5 cm) | .75" (2 cm) | .75" (2 cm) | .75" (2 cm) | .75" (2 cm) |
| Number of Blades on Rotor | 21 | 21 | 17 | 15 | 11 | 15 | 11 |
| Target Material Diameter | 20" (51 cm) | 15" (38 cm) | 10" (25 cm) | 6" (15 cm) | 4" (10 cm) | 4" (10 cm) | ≤ 4" (10 cm) |
| Exterior Length | 78" (198 cm) | 79" (200 cm) | 65" (165 cm) | 60" (152 cm) | 47" (119 cm) | 47" (119 cm) | 39" (99 cm) |
| Height | 43" (109 cm) | 44" (112 cm) | 38" (97 cm) | 50" (127 cm) | 38" (97 cm) | 31" (79 cm) | 33" (84 cm) |
| Width | 32" (81 cm) | 39" (99 cm) | 29" (74 cm) | 30" (76 cm) | 30" (76 cm) | 26" (66 cm) | 26" (66 cm) |
| Rotor Diameter | 20" (51 cm) | 20" (51 cm) | 18" (46 cm) | 17" (43 cm) | 17" (43 cm) | 14" (36 cm) | 14" (36 cm) |
| Weight, typical (estimated) |
3700 lb (1678 kg) |
3400 lb (1542kg) |
2220 lb (1007 kg) |
1570 lb (712 kg) |
1420 lb (644 kg) |
1120 lb (508 kg) |
920 lb (417 kg) |
| Weight, with all options | 4640 lb (2105 kg) |
4100 lb ( 1860 kg) |
2900 lb (1315 kg) |
2000 lb (907kg) |
1830 lb (830 kg) | 1200 lb (544kg) | 1000 lb (454 kg) |
| HYDRAULIC SYSTEM | DAH-150Er | DAH-150E | DAH-125D | DAH-100C | DAH-080C | DAH-085B | DAH-065B |
| Motor Mx Cyl. (cc) | 170 | 115* | 115 | 85 | 60 | 60 | 28 |
| Required Continuous Flow* | 55 gal/min (208 L/min) |
38 gal/min (144 L/m) |
35 gal/min (133 L/min) |
27 gal/min (102 L/min) |
20 gal/min (76 L/min) |
20 gal/min (76 L/min) |
14 gal/min (53 L/min) |
| Operating Pressure (psi) - Up to* | 6000 | 5000 | 5000 | 5000 | 4000 | 4000 | 4000 |
| Optimal Rotating Speed (rpm) | 3000 | 3000 | 3000 | 3000 | 3000 | 4000 | 4000 |
| Pressure Line I.D. | 1.25" (#20) | 1" (#16) | 1" (#16) | .75" (#12) | .625" (#10) | .625" (#10) | .625" (#10) |
| Return Line I.D. | 1.25" (#20) | 1" (#16) | 1" (#16) | .75" (#12) | .625" (#10) | .625" (#10) | .625" (#10) |
| Drain Line | .75" (#12) | .75" (#12) | .75" (#12) | .75" (#12) | .50" (#8) | .50" (#8) | .50" (#8) |
| Options | DAH-150Er | DAH-150E | DAH-125D | DAH-100C | DAH-080C | DAH-085B | DAH-065B |
| Tilt System | X | X | X | X | X | X | X |
| Bolt-in Wear Liner | X | X | X | X | X | X | X |
| Type of Sharpenable Blades | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| * Can have a 170cc motor option installed but requires more flow. | |||||||
| These are minimum requirements; call your Denis Cimaf Sales Representative for guidance in selecting the best match for your equipment. |
What is a mulching attachment for excavators, and how does it work?
A mulching attachment for excavators, like Denis Cimaf, is designed to be mounted on the arm of an excavator. It uses powerful rotating drum or disc cutters to grind and mulch vegetation into fine particles, suitable for land clearing and vegetation management.
What types of excavators are compatible with Denis Cimaf mulching attachments?
Denis Cimaf mulching attachments are compatible with most sizes and types of excavators, typically ranging from compact models to larger construction-class machines. Compatibility depends on the attachment's specifications and the excavator's hydraulic system capabilities.
What are the advantages of using a mulching attachment on an excavator?
Using a mulching attachment on an excavator offers increased reach and versatility compared to other types of equipment. It allows operators to efficiently clear vegetation in challenging terrain and hard-to-reach areas.
How does a mulching attachment affect the performance and stability of an excavator?
Properly balanced and installed, Denis Cimaf attachments integrate with the excavator's hydraulic system to maintain stability and maneuverability while enhancing its capability to handle dense vegetation and land-clearing tasks.
What kind of maintenance is required for Denis Cimaf attachments on excavators?
Regular maintenance includes checking hydraulic connections, inspecting and replacing cutting teeth as needed, and ensuring the attachment's components are in good working condition to maximize performance and longevity.
Can Denis Cimaf attachments handle different types of terrain and vegetation?
Yes, Denis Cimaf attachments are versatile and capable of handling various terrains, including steep slopes, rough terrain, and dense vegetation types commonly encountered in forestry, land management, and vegetation management projects.
Are there specific safety considerations when using Denis Cimaf attachments on excavators?
Operators should adhere to safety guidelines and wear appropriate personal protective equipment (PPE). It's crucial to maintain awareness of the excavator's surroundings, especially when working near obstacles or uneven terrain.
What are the typical applications for mulching attachments like Denis Cimaf on excavators?
Denis Cimaf attachments on excavators are used for tasks such as clearing land for new construction, maintaining rights-of-way, clearing brush and vegetation from utility corridors, and restoring natural habitats.
How does the mulching quality compare with other methods of vegetation control?
Denis Cimaf mulching attachments produce fine mulch that promotes soil health and erosion control, offering an efficient and environmentally friendly alternative to traditional land-clearing methods like burning or mechanical clearing.
Is training required to operate an excavator with a Denis Cimaf attachment?
Proper training is essential for safe and efficient operation of an excavator with a mulching attachment like Denis Cimaf. Operators should be familiar with excavator controls, attachment operation, and maintenance procedures to ensure optimal performance and safety.
